Application

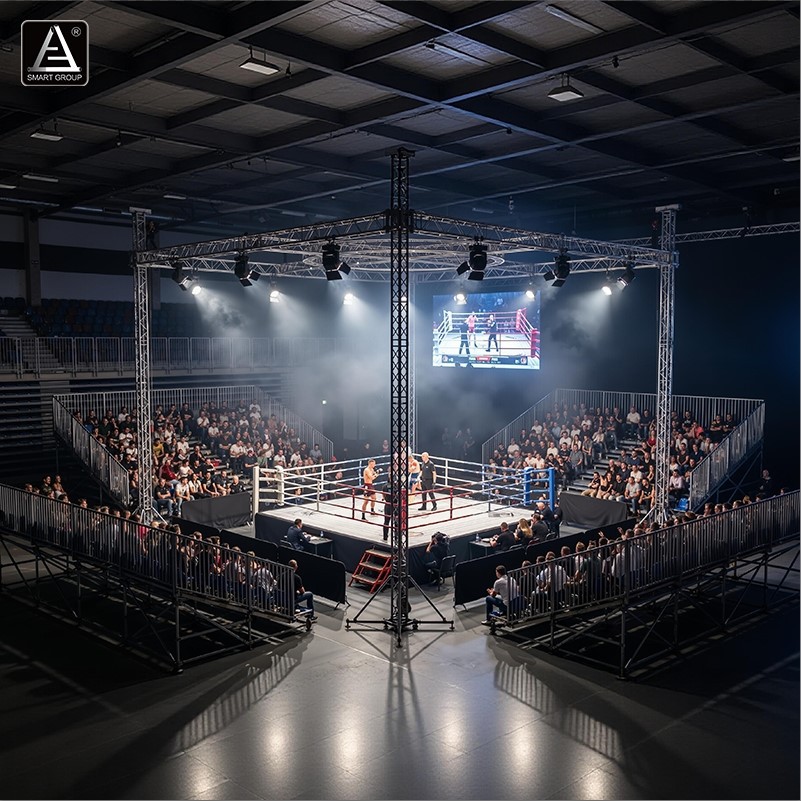

1. Core Competition Area: Professional Boxing Ring
The centerpiece must meet AIBA (International Boxing Association) standards for safety and performance.
· Platform Dimensions: $6.1m x 6.1m (inner rope-to-rope measurement) for international matches.
· Structural Frame: Heavy-duty galvanized steel with acoustic dampening pads to minimize resonance and vibration from athlete movement.
· Floor System:
· Base: High-density anti-vibration plywood (approx. 25mm - 30mm thickness).
· Padding: Professional-grade EVA foam shock-absorber (20mm - 25mm thickness) with calibrated rebound density.
· Surface: Heavy-duty, non-slip, anti-tear cotton canvas or treated PVC (sweat-resistant).
· Rope System:
· Configuration: 4 ropes, approx. 40mm diameter, wrapped in soft leather or high-density foam.
· Tensioning: Individual heavy-duty turnbuckles for each rope to ensure uniform tension and prevent "fall-through" accidents.

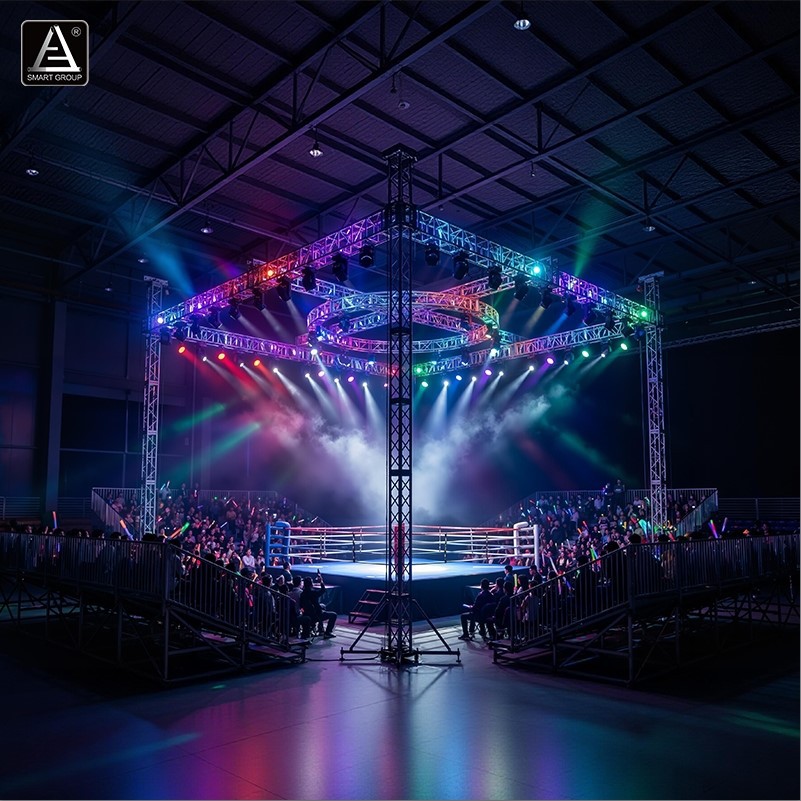

2. Overhead Engineering: Heavy-Duty Truss System
The "skeleton" of the arena, responsible for structural safety and technical integration.
· Material Grade: Aerospace-grade aluminum alloy (e.g., 6082-T6).
· Truss Dimensions: Square trussing (typically 400mm x 400mm or 500mm x 600mm) for high load-bearing capacity.
· Load Factor: Must be designed with a safety factor of at least 2.0x to support lighting arrays, audio line arrays, and center-hung LED screens.
· Lifting System: Synchronized electric chain hoists (motors) for safe raising/lowering during maintenance.
3. AV Integration: Lighting, Display & Scoring
Standardized for 4K broadcasting and high-impact spectator experience.
Competition Lighting:
· Illuminance: Vertical illuminance at ring center of 2000lux - 2500lux (required for 4K/8K broadcasting).
· Color Rendering Index (CRI): Ra ≥ 90 for natural skin tones on camera.
· Color Temperature: Standard 5600K (Daylight) to reduce glare for athletes and judges.
Center-Hung LED Screen (Jumbotron):
· Pixel Pitch: P2.5 or P3.91 for high-definition clarity at close range.
· Refresh Rate: ≥ 3840Hz to eliminate flicker on broadcast cameras.
· Electronic Scoring: Multi-terminal integration (5-judge system) with millisecond-sync to the main display.
4. Spectator Area: Modular Grandstands
· Sightline Analysis (C-Value): Calculation of tier heights to ensure unobstructed views of the ring from every seat.
· Seating Material: High-Density Polyethylene (HDPE) blow-molded seats; must be flame retardant and anti-static.
· Safety/Egress: Layout must comply with fire safety codes (typically 0.6m of egress width per 100 persons).
5. Backstage & Functional Facilities
Essential for the operational flow of a professional event.
· Athlete Locker Rooms: Includes dedicated massage/physiotherapy zones, ice-machine stations, and high-flow hot water systems.
· VIP/Media Lounges: Dedicated high-speed fiber optic uplinks for live streaming and press transmissions.
· Official Areas: Referee rooms with one-way glass or CCTV monitoring for match supervision.
