Guangzhou Smart Sports Industrial Co., Ltd. is one of the most reliable manufacturers and suppliers of Stadium Floodlights System in China. Welcome to wholesale high quality customized products at competitive price from our factory. Contact us for more cheap products.
Type 1: Specifications of Stadium Floodlight
product parameters
| Wattage | 1440W/1650W/1800W/2040W |
| Voltage | AC100-277V/180-528VAC |
| Beam angle | 12°/16°/30°/60°/60°x130°/40°x130°/25°x130° |
| Lighting effect | 150lm/W(Lumileds5050) |
| Color temperature | 5000K (2200K-6500K aptional) |
| Manifestation | 70 ,80,90 |
| Frequency | 50/60 Hz |
| Waterproof rating | IP66 |
| Power supply | Infinite Energy |
| 3G vibration level | EN 60068-2-6 |
| Working temperature | -30°C to +50°C |
| Life expectancy | >102000hrs(@L70) |
| Dimming Protocol | DMX/Dali/0-10v |
Type 2: Specifications of Stadium Floodlight
product parameters
| Wattage | 600W/680W/750W/800W |
| Voltage | AC100-240V /277-480VAC |
| Beam angle | 15°/30°/40°/50°/60° |
| Lighting effect | 160lm/W |
| Color temperature | 5700K (2200K-6500K optional) |
| Manifestation | >70 (>80,>90 optional) |
| Frequency | 50/60 Hz |
| Waterproof rating | IP66 |
| Power supply | Infinite Energy |
| 3G vibration level | EN 60068-2-6 |
| Working temperature | -30°C to +45°C |
| Life expectancy | >102000hrs(@L70) |
Type 3: Specifications of Stadium Floodlight
product parameters
| Wattage | 240W/480W/720W/960W/1200W |
| Voltage | AC100-240V/277-480VAC |
| Beam angle | 12°/30°/60°/25°x130°/40°x130°/60°x130° |
| Lighting effect | 150lm/W |
| Color temperature | 5000K (2200K-6500K optional) |
| Manifestation | >70 (>80,>90 optional) |
| Frequency | 50/60 Hz |
| Power supply | Infinite Energy |
| 3G vibration level | EN 60068-2-6 |
| Epoxy polyester | Anticorrosion |
| Waterproot rating | IP66 |
| Working temperature | -30°C to +45°C |
| Life expectancy |
>102000HRS (@L70) |
Type 4: Specifications of Stadium Floodlight
product parameters
| Wattage | 1000W/1200W/1500W/1800W |
| Voltage | AC100-240V/277-480VAC |
| Beam angle | 12°/15°/25°/40°/130° |
| Lighting effect | 160-170Im/W |
| Color temperature | 5700K (2200K-6500K optional |
| Manifestation | >70 (>80,>90 optional) |
| Frequency | 50/60 Hz |
| Power supply | Infinite Energy |
| 3G vibration level | EN 60068-2-6 |
| Epoxy polyester | Anticorrosion |
| Working temperature | -30°C to +45°C |
| Dimming Protocol | DMX/Dali/0-10V |
Type 4: Specifications of Stadium Floodlight
product parameters
| PRO | STD | ||
| Model number | Wattage | Model number | Wattage |
| SM-I-100H | 100W | SM-I-100S | 100W |
| SM-I-150H | 150W | SM-I-150S | 150W |
| SM-I-200H | 200W | SM-I-200S | 200W |
| SM-1-250H | 250W | SM-1-250S | 250W |
| SM-I-300H | 300W | SM-I-300S | 300W |
| SM-1-400H | 400W | SM-1-400S | 400W |
| SM-I-500H | 500W | SM-I-500S | 500W |
| SM-I-600H | 600W | SM-I-600S | 600W |
| Lighting effect | 170lm/W(Lumileds5050) | 40Im/W(Lumileds3030) | |
| Beam angle | 30°/60°/90°/120°/60°x135°/85°x135° | ||
| Voltage | AC100-277V | ||
| Color temperature | 5700K (2200K-6500K optional) | ||
| Manifestation | 70/80 | ||
| Waterproof rating | IP66 /IP67 | ||
| Working temperature | -30°C to +45°C | ||
| Intelligent control | DAL1/0-10V | ||
| Certification | CE-LVD/CE-EMC/global mark/IP66 /IP67/ROHS/ENEC/CB | ||
Key Features of LED Stadium Flood Lights
1. High Brightness and Excellent Illumination
Modern LED Sports Flood Lights use high-efficiency LED chips to provide powerful lighting output while maintaining low energy consumption.
Advantages include:
High luminous efficiency
Stable brightness output
Better visibility
Reduced energy costs
The lighting level can be customized according to different competition standards.
2. Energy Saving and Low Operating Cost
Compared with traditional metal halide lamps, LED stadium floodlights significantly reduce power consumption.
Benefits include:
Up to 50%-70% energy savings
Lower maintenance frequency
Longer service life
Reduced operating expenses
This makes LED lighting an ideal choice for modern sustainable stadium construction.
3. Professional Optical Design
Stadium lighting requires precise light distribution to avoid dark areas and excessive brightness.
Our flood lights feature:
Asymmetric beam design
Multiple beam angle options
Uniform light distribution
Reduced light spill
Anti-glare technology
The lighting system can be customized for different stadium layouts.
Stadium Flood Light Installation Solutions
A professional lighting installation requires accurate planning based on the venue structure.
Common installation methods include:
● High Mast Lighting System
Suitable for:
Large football stadiums
Professional sports venues
Outdoor arenas
Features:
Large lighting coverage
Reduced number of poles
Easy maintenance design
● Corner Pole Lighting System
Suitable for:
Football fields
Training grounds
School sports facilities
Features:
Cost-effective solution
Simple installation
Flexible lighting adjustment

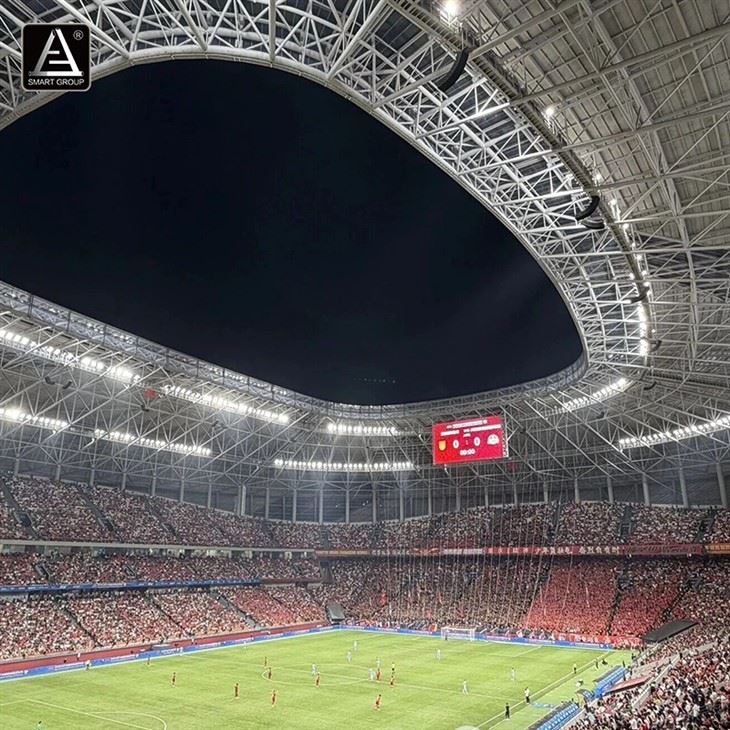

● Roof-Mounted Lighting System
Suitable for:
Indoor arenas
Covered stadiums
Large event halls
Advantages:
Better visual appearance
Improved lighting uniformity
Space saving
Conclusion
A professional Stadium Flood Light System is essential for creating a safe, high-quality, and visually impressive sports environment. With advanced LED technology, intelligent control options, and durable outdoor construction, modern stadium floodlights provide excellent illumination while reducing energy consumption and maintenance costs.
SMART SPORTS delivers reliable LED Stadium Lighting Solutions for football stadiums, sports arenas, and outdoor facilities worldwide, helping customers build professional and efficient sports venues.
